Common Causes of MR-J2-60CT Failure and How to Fix Them

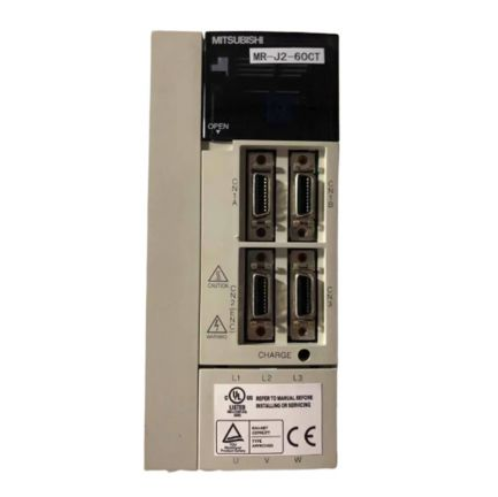

The MR-J2-60CT Mitsubishi servo amplifier unit has been widely used in industrial automation systems such as CNC machines, robotics, packaging equipment, and material handling lines. Although it is known for stability, in real factory environments it often operates under conditions that are far from ideal—continuous load variation, unstable power supply, heat accumulation, and long-term aging.

Most “failures” of the MR-J2-60CT are not sudden defects in the electronics themselves, but the result of progressive stress accumulation inside the drive system. Understanding the root mechanisms behind these failures is far more important than simply replacing the unit.

1. Power Supply Instability and Internal DC Bus Stress

One of the most common hidden causes of MR-J2-60CT malfunction is not inside the servo amplifier itself, but in the upstream power environment.

In many factories, especially where multiple large inductive loads operate simultaneously (compressors, welders, spindle motors), the incoming AC line often experiences:

• Voltage dips during load switching

• Harmonic distortion from non-linear loads

• Momentary surges at startup of heavy equipment

Inside the MR-J2-60CT, these disturbances translate into stress on the rectifier and DC bus capacitors. Over time, electrolytic capacitors lose capacitance and ESR increases, causing unstable DC voltage regulation.

Typical symptoms:

• Sudden alarm during machine startup

• Intermittent reset or shutdown

• Overvoltage / undervoltage alarm codes

Deeper fix approach:

Instead of immediately replacing the drive, a proper diagnosis should include:

• Checking DC bus ripple under load (not just idle voltage)

• Testing capacitor ESR instead of visual inspection

• Evaluating upstream grounding and isolation transformer quality

If the issue is confirmed to be capacitor aging, a controlled refurbishment (capacitor replacement + inrush circuit inspection) is often more effective than full unit replacement.

2. Thermal Degradation Inside Power Transistor Stages

Another failure mechanism is long-term thermal cycling of the power stage, especially the IGBT module.

The MR-J2-60CT is often installed in compact control cabinets where:

• Ventilation is limited

• Dust accumulation reduces heat dissipation

• Ambient temperature fluctuates between shifts

Over time, repeated thermal expansion and contraction causes:

• Solder joint fatigue

• Micro-cracks in power modules

• Reduced thermal conductivity between substrate and heatsink

Symptoms:

• Unit works cold but fails after 20–60 minutes

• Overheat alarm even under light load

• Output instability during acceleration/deceleration

Real repair logic:

The key is not just “cleaning and reapplying thermal grease,” but:

• Measuring temperature rise under dynamic load (not idle)

• Checking thermal coupling resistance

• Inspecting solder integrity under magnification or X-ray in advanced cases

In many cases, failure is not sudden but gradual performance decay before full shutdown occurs.

3. Encoder Feedback Noise and Control Loop Instability

Although the MR-J2-60CT itself does not contain the motor encoder, it heavily relies on feedback signals from the servo motor. In real industrial wiring environments, feedback instability is a major but often overlooked failure trigger.

Common root causes include:

• Long encoder cable routing near power cables

• Poor shielding or grounding practices

• Connector oxidation over time

• EMI from nearby VFDs or welding machines

Symptoms:

• Hunting (oscillation at low speed)

• Positioning error alarms

• Random servo runaway protection trigger

Deeper diagnostic insight:

Many technicians mistakenly assume the drive is faulty, but in reality the issue lies in signal integrity degradation.

Proper troubleshooting should include:

• Checking shield termination at single-point ground

• Measuring noise coupling on encoder lines using oscilloscope

• Temporarily bypassing cable routing to test EMI influence

In mature maintenance systems, encoder signal quality is treated as part of the servo amplifier health, not just the motor side.

4. Aging of Control Board Components and Signal Drift

Even when power and thermal conditions are acceptable, long-term operation (10–20 years) introduces another failure mechanism: analog component drift inside the control circuit.

The MR-J2 series uses a combination of:

• Analog signal conditioning circuits

• Digital control logic (early-generation DSP architecture)

• Precision reference voltage components

Over time:

• Resistors drift out of tolerance

• Reference voltage becomes unstable

• Sensing circuits lose calibration accuracy

Symptoms:

• No clear alarm code, but performance degradation

• Inconsistent torque output

• Slight positioning deviation that worsens gradually

Deeper understanding:

This type of failure is often misdiagnosed as “software issue” or “parameter corruption,” but in reality it is hardware aging at the signal reference level, which cannot be solved by parameter reset.

5. Improper Load Matching and Mechanical Stress Feedback

A servo amplifier does not fail only electrically—it also fails when mechanical load conditions exceed its design assumptions.

Typical issues include:

• Sudden increase in load inertia (machine retrofit)

• Mechanical binding or misalignment

• Gearbox wear increasing torque ripple

• Incorrect servo tuning after replacement

When load mismatch occurs, the MR-J2-60CT continuously compensates through higher current output, which leads to:

• Excessive heat generation

• Current limiting activation

• Accelerated component aging

Key insight:

Many “servo amplifier failures” are actually mechanical system deterioration reflected electrically.

A proper fix requires:

• Checking mechanical friction and backlash

• Re-tuning servo gain parameters

• Validating torque margin under real load conditions

6. Maintenance Environment and Hidden Long-Term Degradation

One of the most underestimated factors is the installation environment over years of operation.

Industrial control cabinets often suffer from:

• Fine conductive dust (metal or carbon)

• Oil mist contamination

• Humidity condensation cycles

• Vibrations transmitted from nearby machinery

These conditions slowly degrade:

• PCB insulation resistance

• Connector contact reliability

• Cooling efficiency

This leads to “random failures” that appear unrelated but are actually cumulative environmental damage.

Conclusion: Failure Is Usually Systemic, Not Isolated

The MR-J2-60CT servo amplifier rarely fails because of a single component defect. In most real-world cases, failure is the end result of interacting electrical stress, thermal fatigue, signal degradation, and mechanical overload.

Effective repair is therefore not just replacement—it requires understanding whether the root cause lies in:

• Power quality

• Thermal design

• Signal integrity

• Mechanical load conditions

• Long-term component aging

Only by identifying the true failure mechanism can downtime be reduced and repeat failures avoided.
