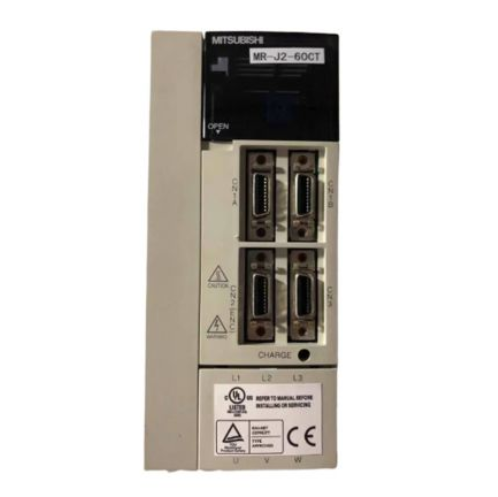

How to Test a Mitsubishi MR-J2-60CT Servo Amplifier

Testing a Mitsubishi MR-J2-60CT servo amplifier unit is not just about checking whether it powers on or shows an alarm. In industrial environments, a “working” drive can still be unstable under dynamic load conditions. A proper test should simulate real operating conditions and evaluate the unit across power, control, and load response levels.

This guide breaks down a practical and deeper testing approach used in maintenance and refurbishment workflows.

1. Pre-Inspection Before Power-On

Before applying power, a physical and electrical inspection is essential. Many hidden failures can be detected at this stage.

Key checks:

• Check for burnt marks or discoloration on PCB and terminals

• Inspect DC bus capacitors for swelling or leakage

• Verify connector pins for oxidation or looseness

• Confirm cooling fan rotates freely (if equipped)

• Check for dust, oil mist, or conductive contamination

Why this matters:

A significant portion of servo failures are caused by progressive degradation, not sudden breakdown. Pre-inspection helps avoid secondary damage when power is applied.

2. Static Electrical Testing (No Load Power Test)

After confirming physical condition, the next step is a controlled power-on test without motor load.

Procedure:

1. Connect only power input (no motor connection initially if possible)

2. Apply rated input voltage (typically 200–230V AC for MR-J2 series depending on system design)

3. Observe front panel indicators and alarm status

4. Measure DC bus voltage using multimeter (if accessible)

Expected behavior:

• No persistent alarm after initialization

• Stable DC bus voltage without large fluctuation

• No abnormal noise from internal relay or capacitors

Deep diagnostic insight:

Even if the unit powers up normally, unstable DC bus ripple or delayed relay engagement often indicates aging capacitor or rectifier stress, which is not visible at surface level.

3. Alarm Code Diagnostic Test

The MR-J2-60CT provides diagnostic alarm codes that are critical for understanding internal failure modes.

Common alarm categories:

• Overvoltage / undervoltage protection

• Overcurrent detection

• Overheating protection

• Encoder or feedback abnormality

• Internal memory or CPU error

Testing approach:

• Clear alarms and re-power the unit

• Record which alarms reappear immediately

• Compare cold start vs warm start behavior

Key insight:

A drive that only triggers alarms after warming up usually indicates thermal-sensitive component degradation, especially in power transistors or control reference circuits.

4. Motor Connection Functional Test (Low Load)

Once static tests pass, connect a compatible servo motor for functional testing.

Steps:

1. Connect motor power + encoder feedback cables

2. Set basic parameters (motor type, encoder resolution, basic gain defaults)

3. Enable servo ON command

4. Run low-speed jog test

What to observe:

• Smooth rotation at low speed

• No hunting or oscillation

• Stable torque response during direction change

• No sudden alarms during acceleration

Deep diagnostic insight:

If the motor vibrates or oscillates at low speed, the issue is often not the motor but:

• Encoder signal noise

• Poor grounding/shielding

• Control loop instability in amplifier aging

5. Dynamic Load Simulation Test

This is the most important step for evaluating real-world performance.

Testing method:

• Apply step load changes (acceleration / deceleration cycles)

• Simulate machine inertia conditions

• Run repetitive start-stop cycles

Key parameters to monitor:

• Current waveform stability

• Response delay during acceleration

• Positioning accuracy deviation

• Heat rise over time

What indicates a healthy unit:

• Stable current without spikes

• Fast response to load change

• No drift in positioning over repeated cycles

Hidden failure indicator:

A unit that passes static and low-speed tests but fails under dynamic load is often suffering from:

• DC bus aging

• Thermal stress in power stage

• Weak control loop compensation

6. Thermal Stability Test (Long Run)

Many MR-J2-60CT failures only appear after extended operation.

Procedure:

• Run motor under moderate continuous load

• Monitor temperature rise over 30–60 minutes

• Check for alarms during thermal saturation phase

Key observations:

• Stable operation after temperature stabilization = healthy unit

• Failure after heating = thermal degradation issue

Deep insight:

Thermal failure is often linked to:

• IGBT module fatigue

• Dried thermal grease

• Aging solder joints inside power stage

7. Encoder Feedback Integrity Test

Encoder-related issues are among the most misdiagnosed problems.

Testing method:

• Run low-speed continuous rotation

• Observe position feedback stability

• Introduce controlled cable movement (light vibration test)

Warning signs:

• Intermittent position error alarms

• Sudden stop during smooth operation

• Jittering at constant speed

Root cause beyond surface level:

In many cases, the amplifier is not faulty—the issue is signal integrity degradation caused by EMI or shielding breakdown.

8. Final Acceptance Criteria

A properly tested MR-J2-60CT should meet all of the following:

• Stable power-up without repeated alarms

• Smooth motor operation at low and medium speeds

• No abnormal heating under continuous load

• No encoder-related instability

• Consistent torque and positioning accuracy

If any of these fail, deeper refurbishment or component-level repair is required rather than simple reuse.

Conclusion

Testing a Mitsubishi MR-J2-60CT servo amplifier requires more than basic power-on verification. Real reliability is determined by how the unit behaves under dynamic load, thermal stress, and signal feedback conditions.

A proper test workflow always moves from:
static inspection → no-load test → motor test → dynamic load simulation → thermal endurance check

Only when all stages are stable can the unit be considered safe for industrial reuse.
