"Applications: High-frequency switching power supplies are specifically designed for laboratories, university R&D, power electronics, scientific research, water treatment, electroplating, electrolysis, electrophoresis, new energy, and other fields; they offer high-precision control, fast response, and high stability."

"Product Introduction:

Bomei Intelligent High-Frequency Switching Power Supply Technology: Utilizes internationally renowned brand IGBT power modules; the main transformer uses imported nanocrystalline magnetic materials; features newly upgraded circuit control technology and intelligent soft-switching synchronous rectification technology, saving 25%-30% more energy than silicon controlled rectifiers; ensures continuous 24-hour operation at full load; energy-saving structure and circuit design; small size; light weight; high efficiency; fully sealed; corrosion-resistant, moisture-proof, waterproof, shockproof, radiation-resistant, and interference-resistant.

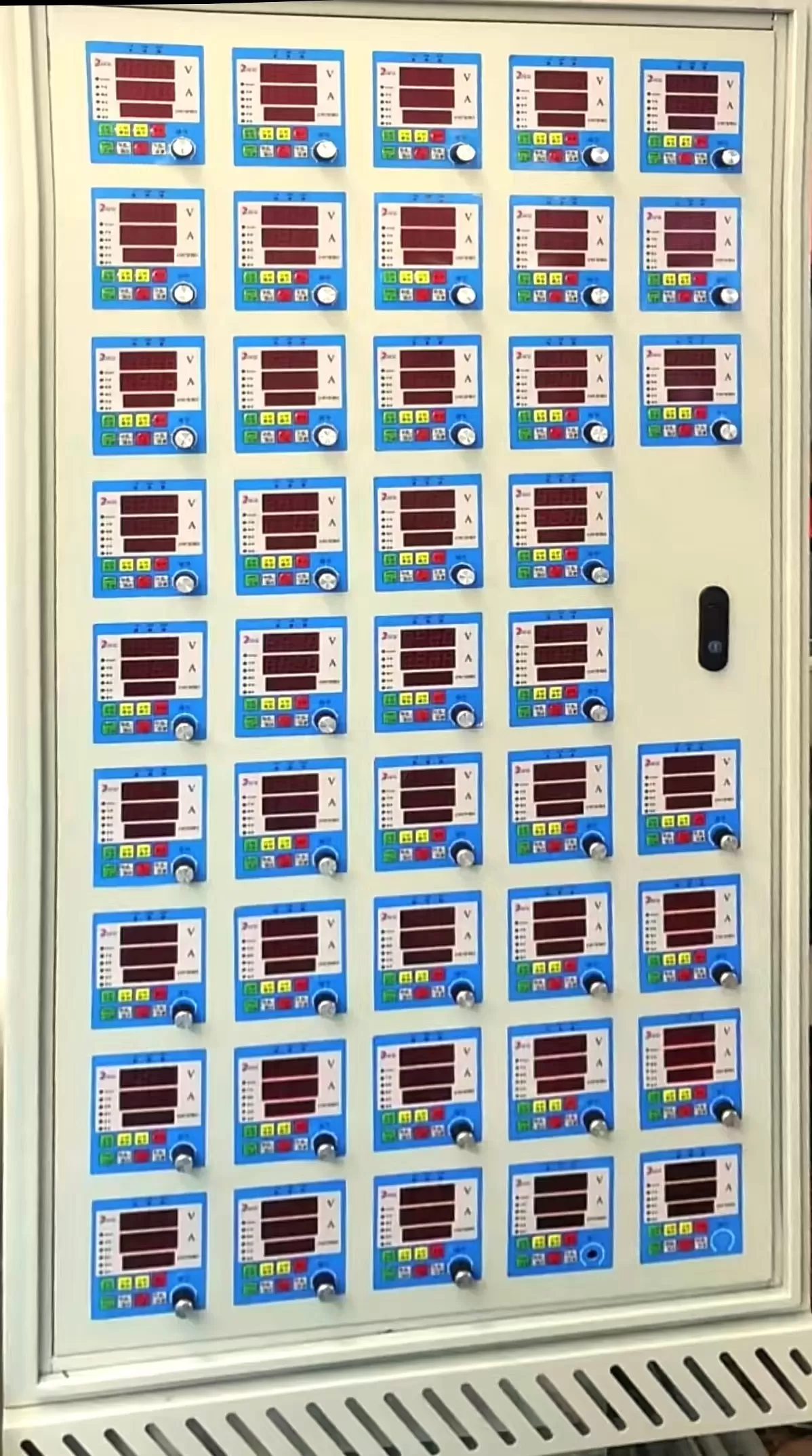

User-friendly display interface, LED digital tube display mode, intelligent touch buttons, one-button start function, master-slave control mode, etc.; compact and scientific structural design, very simple and convenient to use." Product Features:

1. Excellent Energy Saving: Utilizing imported nanocrystalline amorphous materials, this high-frequency transformer (independently developed) is small in size but high in power, significantly improving conversion efficiency. Under normal conditions, it saves 15%~30% more energy than a thyristor rectifier.

2. High Stability: Due to its fast system response, it exhibits strong adaptability to grid power and load changes, with output accuracy better than 1%. The high efficiency of the switching power supply results in high control precision, which is beneficial for improving product quality.

3. Energy-Saving Structure and Circuit Design: High efficiency, excellent sealing, and anti-corrosion, moisture-proof, waterproof, shockproof, radiation-resistant, and anti-interference processes effectively protect the power supply itself, bringing greater benefits to users and offering an ultra-long lifespan.

4. Small Size and Light Weight: 1/5 the size and weight of a thyristor rectifier. ~1/10 the size, with high precision control, making it very convenient for your planning, relocation, installation, and maintenance.

5. Comprehensive Protection Functions: Features multiple protections including phase loss, overvoltage, undervoltage, short circuit, overcurrent, overheating, and (water shortage).

6. Complete Model Specifications: Multiple output voltage and current specifications are available, along with various optional functions and control methods.

High Precision: Output mode is constant current/constant voltage, adjustable and switchable, with output stability far exceeding traditional power supplies, and control precision ≤1%.

Technical Parameters:

Name: High-Frequency Switching Power Supply (Model: Customized according to requirements)

Type: AC/DC Power Supply

Input Voltage: AC 380V±10% (Others can be customized)

Frequency: 50Hz-60Hz (Others can be customized)

Circuit Type: IGBT/PWM

Input Method: Three-phase (Others can be customized)

Output: Output Voltage: DC 0-- ±Maximum value V adjustable (customizable within 0-600V)

Output Current: DC 0-- ±Maximum A adjustable (customizable from 0-100000A)

Output Waveform: Square Wave

Output Power: Output Current * Output Power = Output Power

Output Accuracy: Current Stabilization Accuracy ≤1%

Adjustment Range: Current 0-maximum value, Voltage 0-maximum value

Overall Efficiency: ≥91%

Control: Operating Mode: Constant Current/Constant Voltage Mode

Adjustment Method: Intelligent Digital Control Box (Standard) or Touch Screen

External Control Port: RS-485/MODBUS; Analog Signal 0-10V/0-5V/4-20mA

Current/Voltage: "Constant Current: Current varies with load. Constant Voltage: Voltage varies with load."

Protection Class: IP20

Insulation Class: F

Cooling Method: Air Cooling or Water Cooling (Optional)

Operating Environment: Temperature -10℃ < 45℃; Humidity < 85%; Indoor Use Only

Protection Method It has automatic protection and alarm functions for overcurrent, overvoltage, overtemperature, short circuit, water shortage (water cooling), and phase loss.
