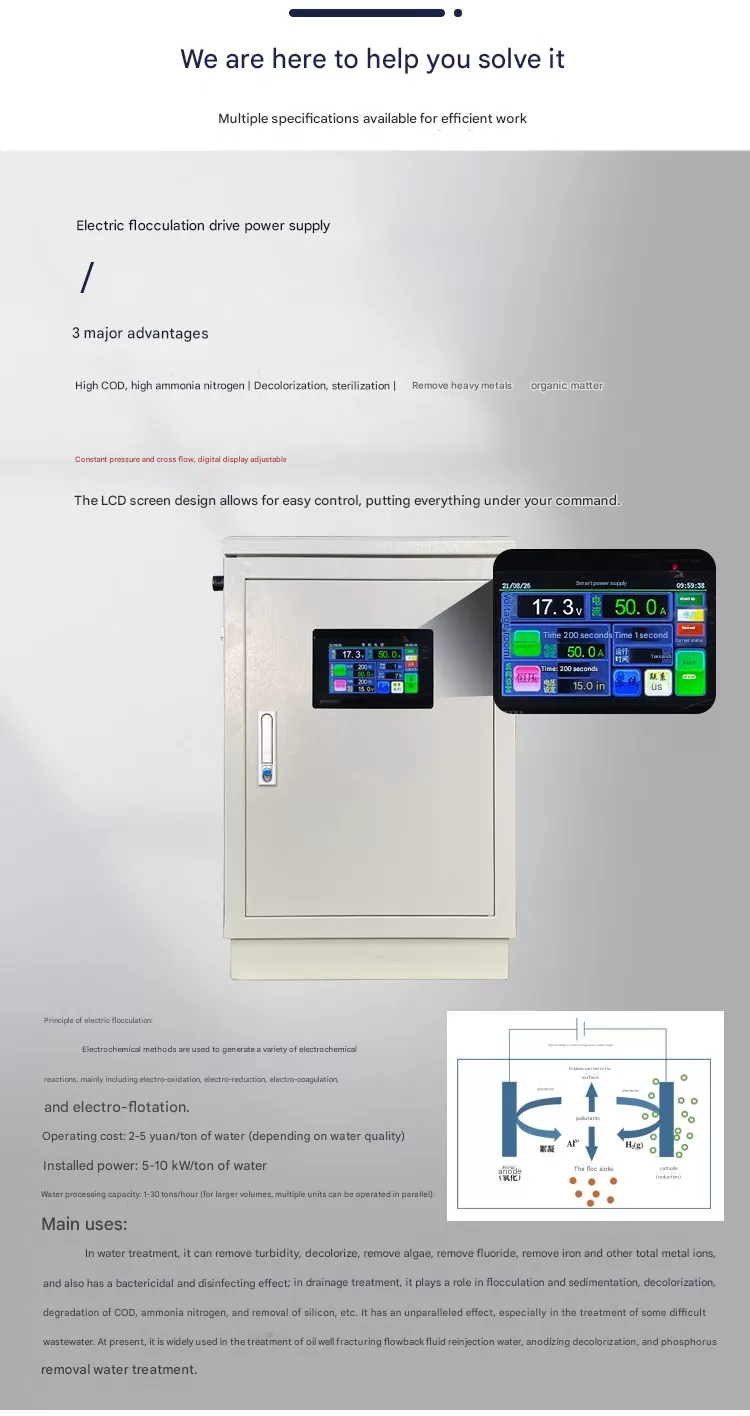

"Introduction to Electrocoagulation Devices: The electrode plates of electrocoagulation devices can be made of different materials depending on the substances being removed, producing strong flocculation, strong oxidation, strong reduction, and strong flotation effects to achieve optimal treatment results. Extensive testing has verified the effectiveness of electrocoagulation in removing various impurities from wastewater."

"Water treatment" is the process of removing substances from water that are unnecessary for production and daily life through physical and chemical means. Generally, water treatment power supplies are specialized equipment that provide the electric field environment required for chemical water treatment methods. Commonly referred to water treatment includes wastewater treatment and drinking water treatment. Different water treatment processes require different power supply specifications.

Applications of Water Treatment Power Supply Rectifiers:

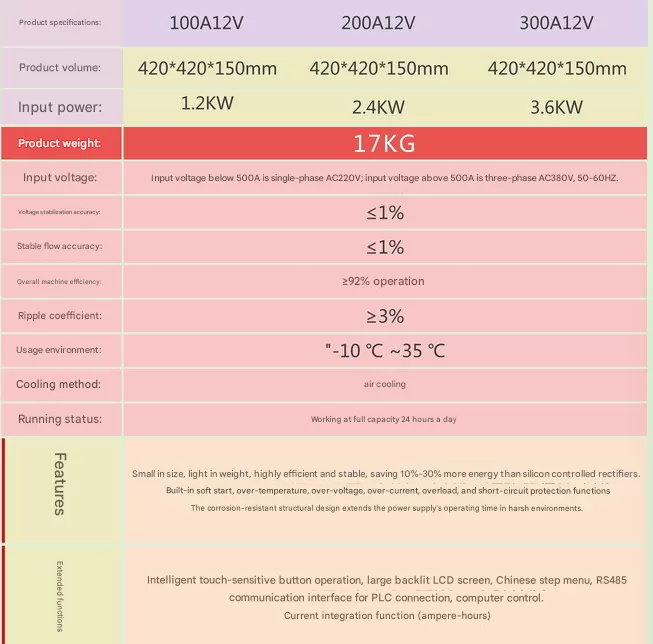

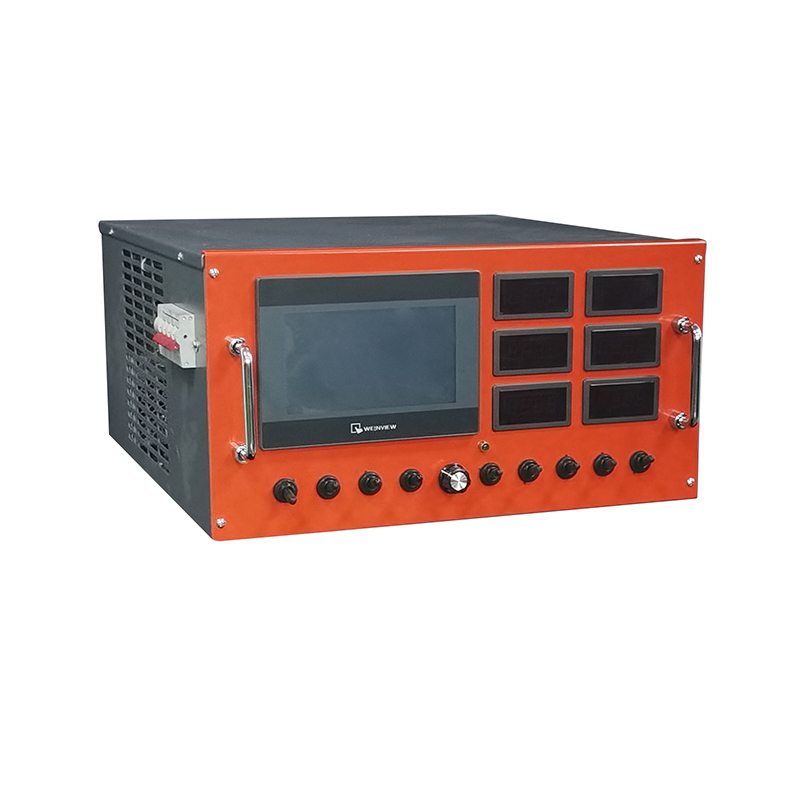

Product Parameters

Item Specification
Input Voltage Three-phase AC380V ±10%, 50~60Hz
Voltage Regulation Accuracy ≤1%
Current Regulation Accuracy ≤1%
Output DC Current DC 0 ~ ±2000A (adjustable)
Output DC Voltage DC 0 ~ ±24V (adjustable)
Overall Efficiency ≥90%
Cooling Method Air cooling / forward-reverse polarity optional
Product Dimensions 510580920mm
Product Weight 130KG



Product Features

1. Small Size & Light Weight
The volume and weight are only 1/5 to 1/10 of those of thyristor rectifiers, making planning, expansion, relocation, maintenance and installation much easier.
2. Excellent Energy-Saving Performance
Thanks to the adoption of high-frequency transformers, switching power supplies deliver significantly improved conversion efficiency. Under normal conditions, they achieve an efficiency increase of over 10% compared to thyristor-based equipment; at a load rate below 70%, the efficiency advantage rises to over 30%.
3. High Output Stability
With a microsecond-level system response speed, the power supply exhibits exceptional adaptability to grid voltage fluctuations and load variations, achieving an output accuracy better than 1%. The high working efficiency also translates to superior control precision, which helps improve product quality.
4. Easy Output Waveform Modulation
Due to the high operating frequency, adjusting the output waveform is cost-effective and straightforward, allowing customization according to specific process requirements. This significantly boosts on-site work efficiency and improves the quality of processed products.
5. Cutting-Edge Industry Technology
High precision, low ripple, capable of long-term overload operation with over 20% power margin, and delivering 20% energy savings compared to conventional power supplies.
Suitable for water treatment electrolysis, water metal extraction, wastewater treatment, seawater desalination, sodium hypochlorite electrolysis, and post-electrolysis applications.

Structure of Water Treatment Power Supply Rectifiers:

The water treatment power supply mainly consists of a rectifier and filter circuit, a full-bridge converter circuit, a high-frequency transformer, a high-frequency rectifier and filter circuit, an auxiliary power supply circuit, and a main control unit. The main control unit circuit mainly consists of a phase loss protection circuit, a temperature protection circuit, an overload protection circuit, a short-circuit protection circuit, and a PWM circuit with PI regulation.

The three-phase grid voltage is rectified and filtered after passing through the power switch, resulting in a smooth 520VDC voltage that supplies the inverter circuit. The inverter circuit mainly consists of a full-bridge converter circuit composed of high-power MOSFET modules or IGBT modules. When the PWM output control signal drives the power supply through the isolation driver... The power supply module uses two sets of diagonal transistors that alternately conduct, generating a high-frequency pulse voltage on the primary side of the high-frequency transformer. The secondary voltage is then rectified by the high-frequency transformer and supplied to the load.

Water treatment power supply features:

1. The power supply can operate in either voltage-regulated and current-limited or current-regulated and voltage-limited modes, and these two modes can be switched arbitrarily.

2. The DC output voltage regulation accuracy is 50%-100%. When the input voltage fluctuates by 10% or the load changes, the output voltage remains unchanged with a regulation accuracy of ≤0.5%.

3. It has a filtering function to prevent interference to instruments during power supply startup, eliminate power grid pollution, and avoid current surges.

4. Phase loss protection: When one phase of the three-phase AC input line is lost, the power supply automatically shuts down. After the fault is cleared, the power supply will automatically resume operation. 5. Overcurrent Protection: When the current exceeds the rated value, the power supply automatically enters an overcurrent shutdown alarm state.

6. Short Circuit Protection: When the power supply load is short-circuited or an internal component is short-circuited, the air switch automatically cuts off the power.

7. Over-Temperature Protection: When the temperature of the IGBT, Schottky, or other semiconductor device base reaches ≥80℃, the electronic switch on the main control board activates, locking the power supply and effectively protecting it.

Industry-leading technology, high precision, low ripple, capable of long-term overload operation, power margin >20%, 20% energy saving compared to ordinary power supplies.
