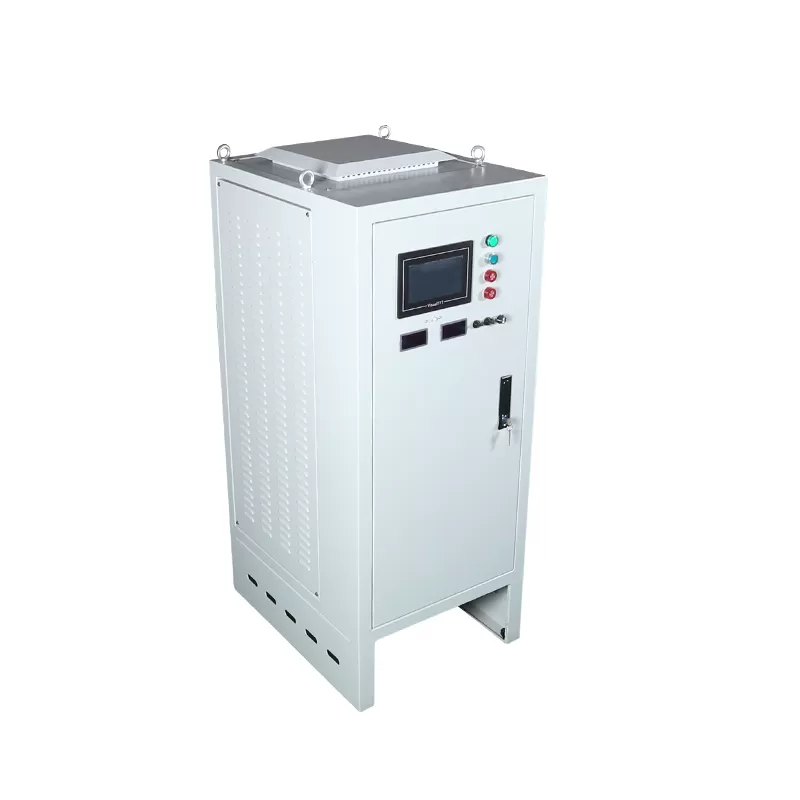

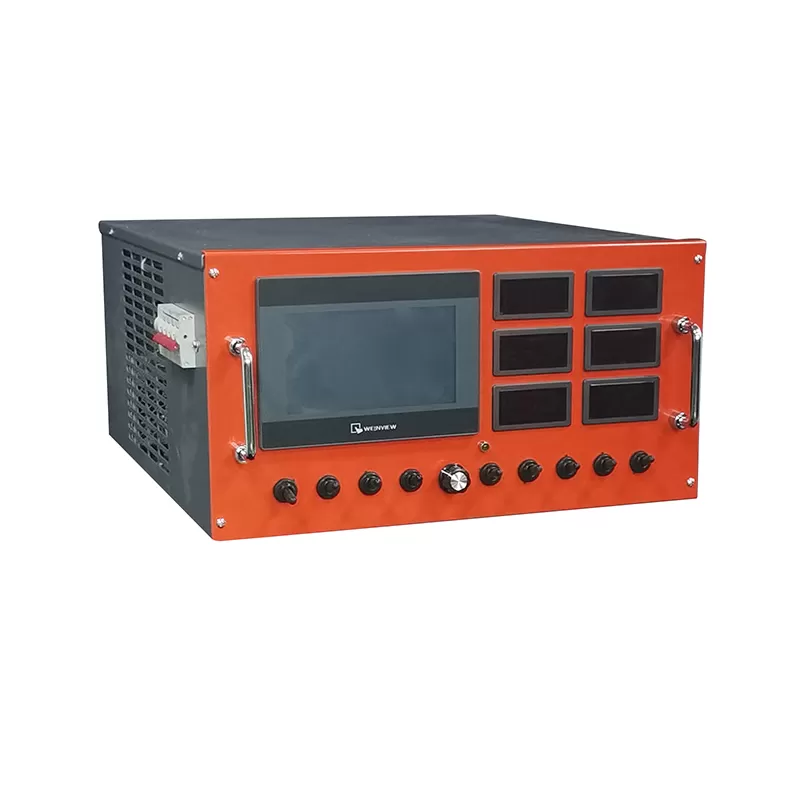

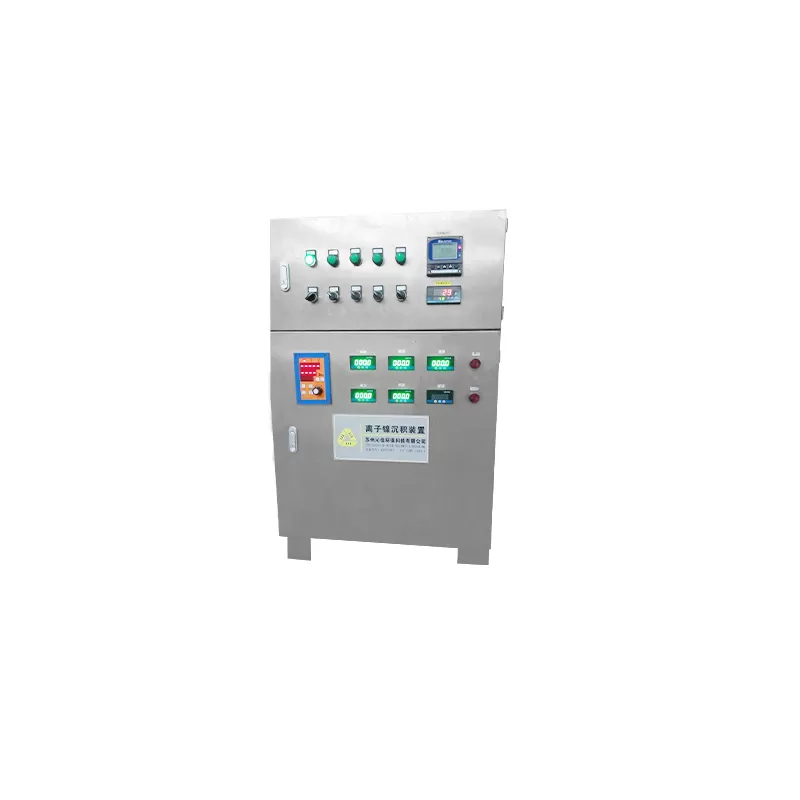

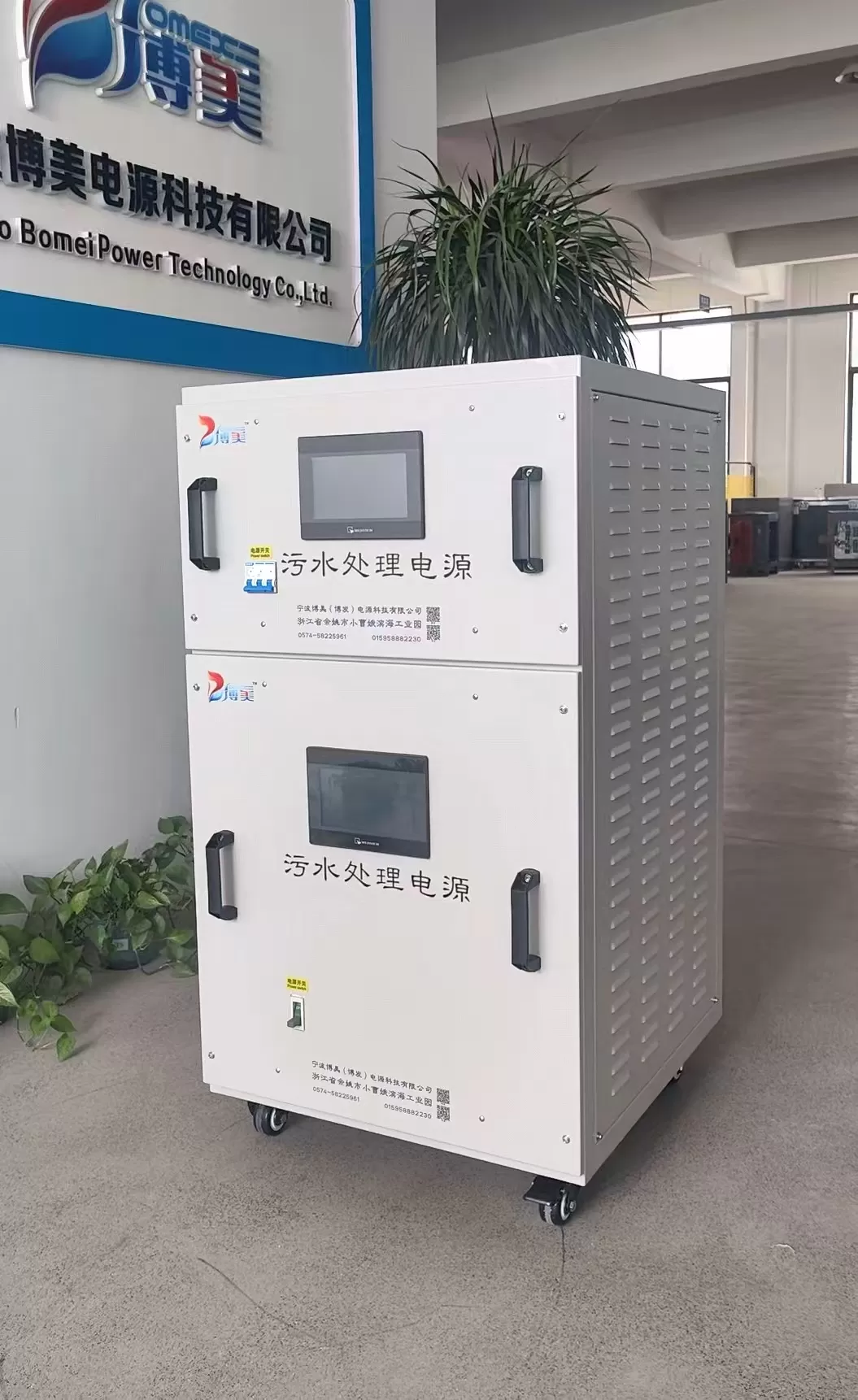

Wastewater treatment power supply

Wastewater Treatment Power Supplies
Suitable for water treatment electrolysis, electrocoagulation, metal extraction from water, wastewater treatment, seawater desalination, electrostatic descaling, and other fields.
Main Products: Wastewater treatment (power supplies for electrocoagulation, electrocatalytic oxidation, electrostatic descaling, electro-Fenton, electrodialysis, etc.); Surface treatment (power supplies for electroplating, electrophoresis, electropolishing, oxidation, etc.). All specifications of industrial power supplies are available for electroplating processes or wastewater treatment methods. "High Efficiency and Energy Saving: Utilizing high-frequency switching technology, the conversion efficiency reaches 90%-91%, saving 20%-30% more electricity than traditional power supplies, resulting in lower operating costs.

High Precision: Output modes are constant current/constant voltage, with switchable modes. Output stability is far superior to traditional power supplies, with fluctuations less than 1%.

Compact Size: High operating frequency significantly reduces transformer size, resulting in a lightweight and compact unit that is easy to install and arrange.

Comprehensive Protection Functions: Features automatic protection against phase loss, overvoltage, undervoltage, short circuit, overcurrent, overheating, and (water shortage).

Mature and Perfected Technology: Excellent sealing and a complete cooling system, capable of long-term use in acidic, alkaline, and humid environments.

Technical Effects: Highly effective removal of metal ions, impurities, oil, nitrogen, phosphorus, etc., from wastewater; also helps promote the biodegradation of organic matter in wastewater, promotes microbial metabolism and growth, transforming it into inorganic organisms, thus purifying the water."

Technical Parameters:
Voltage: AC 220V/380V±10% 50-60Hz
Input Method: One-phase two-wire/Three-phase four-wire Control Method: IGBT/PWM Modulation
Output Voltage/Current: DC 0 -- ± Rated Voltage/Current
Output Waveform: Square Wave
Output Power: 10VA-800KVA
Control Accuracy: ≤0.1A/V
Overall Efficiency: ≥91%
Operating Mode: Constant Current/Constant Voltage Mode

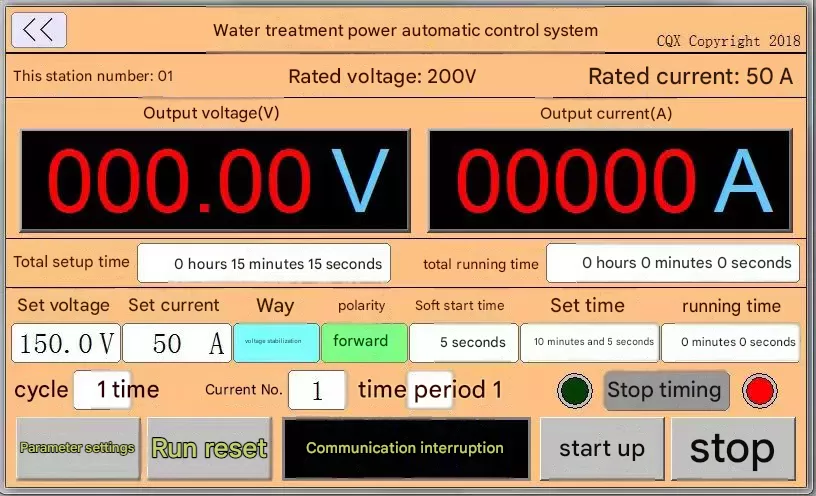

Adjustment Method: Intelligent Digital Control Box (Standard) or Touch Screen
Cooling Method: Air Cooling or Water Cooling
Protection Rating: IP20
Protection Functions: Multiple protections including overcurrent, overvoltage, overtemperature, short circuit, and phase loss
Operating Environment: Temperature -10℃ < 45℃; Humidity < 85%
Optional Functions: Automatic Reversal Function
Communication Interface: RS485/MODBUS; Analog Interface: 0-10V/0-5V/4-20mA
