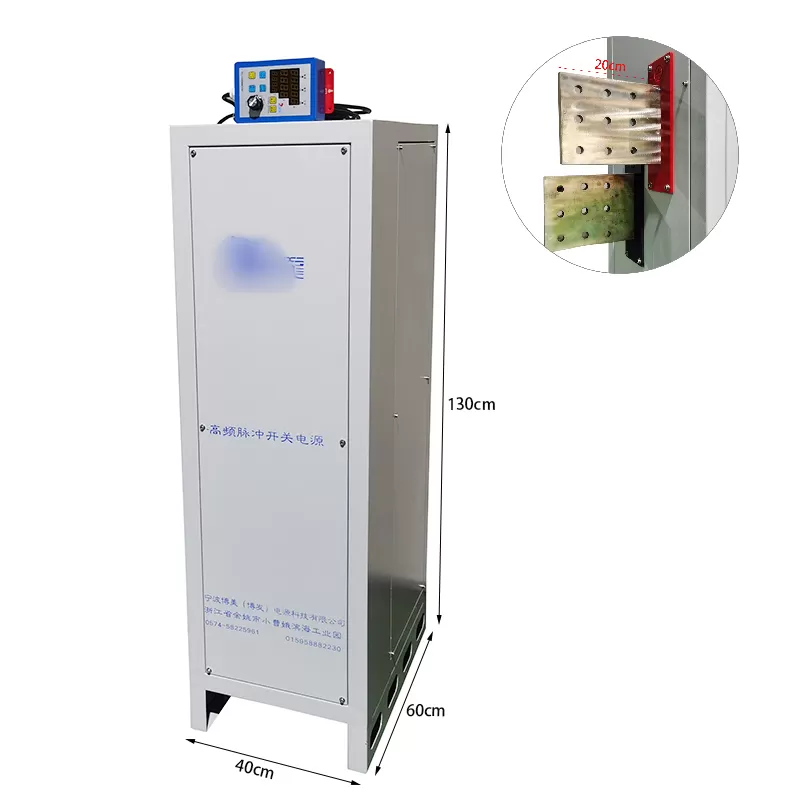

Water-cooled high-frequency switching power supply

Product Features:

1. Fully enclosed design, low noise, smaller size than air-cooled models, high power (independently developed) high-frequency transformer, significantly improving conversion efficiency, saving 15%~30% more energy than thyristor rectifiers under normal conditions.

2. High stability: Due to the fast system response, it has strong adaptability to grid power and load changes, with output accuracy better than 1%. The high efficiency of the switching power supply results in high control precision, which is beneficial to improving product quality.

3. Energy-saving structure and circuit design: High efficiency, fully sealed, corrosion-resistant, moisture-proof, waterproof, shockproof, radiation-resistant, and interference-resistant, effectively protecting the power supply itself, bringing greater benefits to users, and offering an ultra-long lifespan.

4. Small size and light weight: 1/5 the size of a thyristor rectifier. ~1/10 the size, with high precision control, making it very convenient for your planning, relocation, installation, and maintenance.

5. Comprehensive protection functions: Equipped with protection against phase loss, overvoltage, undervoltage, short circuit, overcurrent, overheating, and (water shortage), providing full protection for your equipment.

6. Complete range of models and specifications: Multiple output voltage and current specifications are available, along with various optional functions and control methods.

Item Name Water-cooled High-Frequency Switching Power Supply

1 Model 8000A/12V

2 Type AC/DC Power Supply

3 Modulation Method Pulse Width Modulation (PWM)

4 Output Power 96KW

5 Efficiency 91%

6 Load Regulation 1%

7 Input Voltage 380V (customizable)

8 Cooling Method Water-cooled

Note: Specific requirements can be precisely customized according to customer specifications.

Item Model Standard Chassis Dimensions (mm)/Weight (KG)

1 1000A/12V 460*500*300/≈16KG
2 2000A/12V 460*500*300/≈25KG
3 3000A/12V 610*450*800/≈40KG
4 4000A/12V 610*450*800/≈55KG
5 5000A/12V 600*450*1300/≈65KG
6 6000A/12V 600*450*1300/≈75KG
7 7000A/12V 600*450*1300/≈85KG
8 8000A/12V 600*450*1300/≈98KG
9 10000A/12V 600*450*1300/≈138KG
Condition: new and used
Quality: 100% tested ok
Warranty: 1 year for new, 6 months for used
Shipment Terms: DHL UPS FEDEX EMS
Payment Terms: Paypal / T T

DESCRIPTION

Shanghai Yaotai technology Co.,Ltd is a high-tech enterprise specializing in the research and development, production and sales of high-frequency switching power supplies. It was established in 2021 and is located in Ningbo, a pilot demonstration city for manufacturing in China!
Our company mainly produces: high-frequency switching power supplies, electrolytic hydrogen production power supplies, electrodialysis power supplies, sewage treatment power supplies, electrocoagulation power supplies, single/double pulse power supplies, electroplating power supplies, high-power DC power supplies, monocrystalline silicon heating power supplies, precision laboratory power supplies, electrophoretic painting power supplies, smelting power supplies, DC commutators, silicon-controlled rectifiers, precious metal and customized high-power non-standard power supplies, etc. We have accumulated years of on-site experience in the research and development of power supplies in these industries.
The main force is dedicated to the research and development in the fields of power supply energy conservation, automation and intelligence, striving to produce products that better meet market demands, provide users with higher-quality power supplies, and make greater contributions to environmental protection. Adhering to the principle of "quality first", with professional and rigorous scientific management, it constantly breaks through in the technical field and innovates. At the same time, it provides users with technical support and perfect after-sales service, making customers worry-free and users at ease! With continuous optimization of technology and a good corporate image, it establishes good cooperative relationships with new and old customers and sincerely invites partners from all countries!
Our advantages: source factory, R&D and manufacturing, technical experience, team management, professional service
Email: www.yaotaishcnc.com
Contact number: Lily Qiu +852 9064 3510
Email: sales12@yaotaishcnc.com
